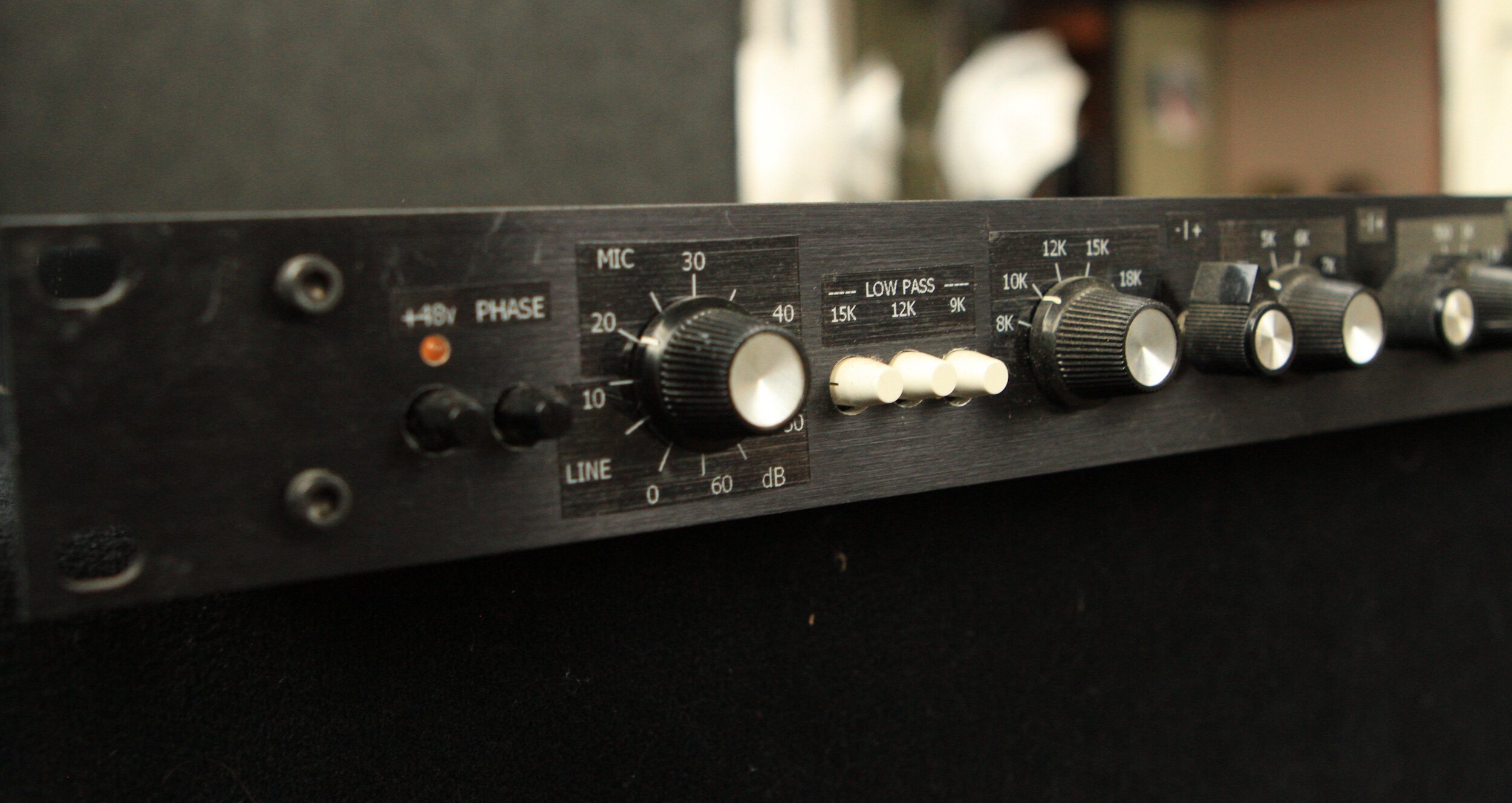

This build is a clone of the Trident A-Range console strip. It is a mic preamp or line amp followed by a 6 channel EQ: 4 mid bands and high and low shelves.
       
     

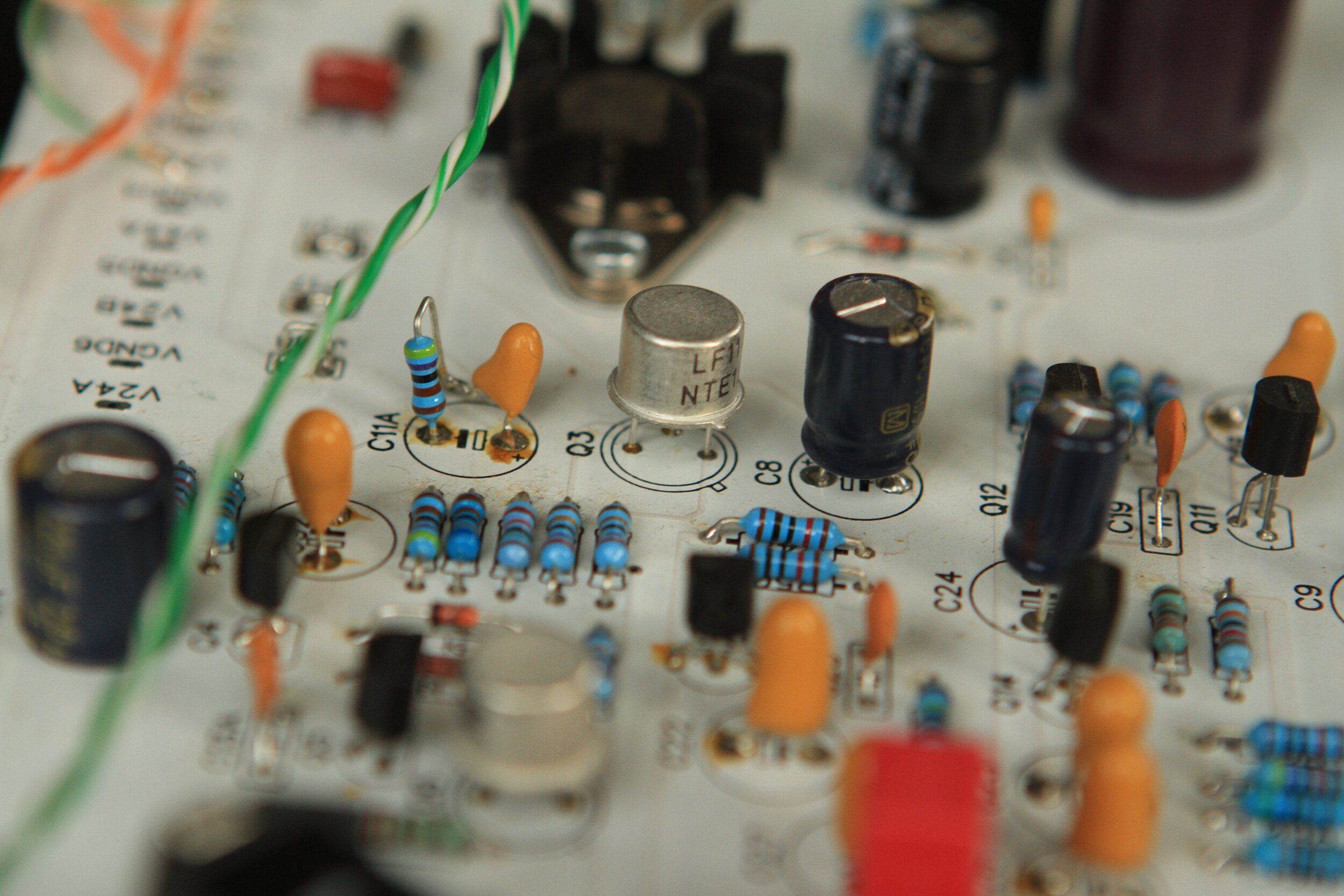

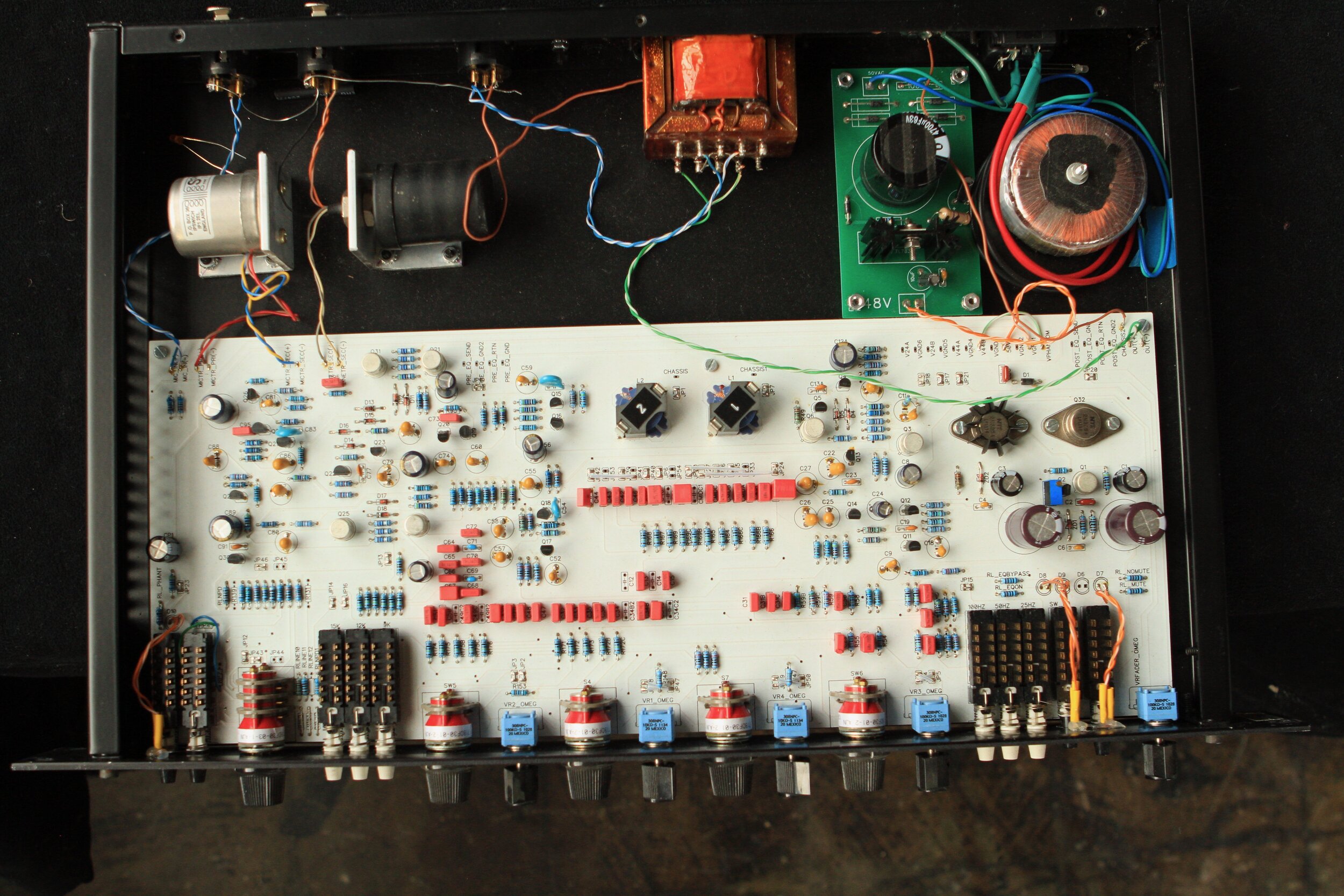

 Based on examining the channel strips and original schematics at Smart Studios in Madison, WI, I drew a PCB, closely following the original routing. Like the original, two transformers are used for the mic and line input, with the 3 deck grayhill sw
       
     
 The inductors were wound by ChrioN at groupdiy from specs calculated from the schematic. An initial attempt was built up and I brought it over to the Studio. Listening side-by-side against the vintage Trident console, the Inductor bands did not soun
       
     
       
     

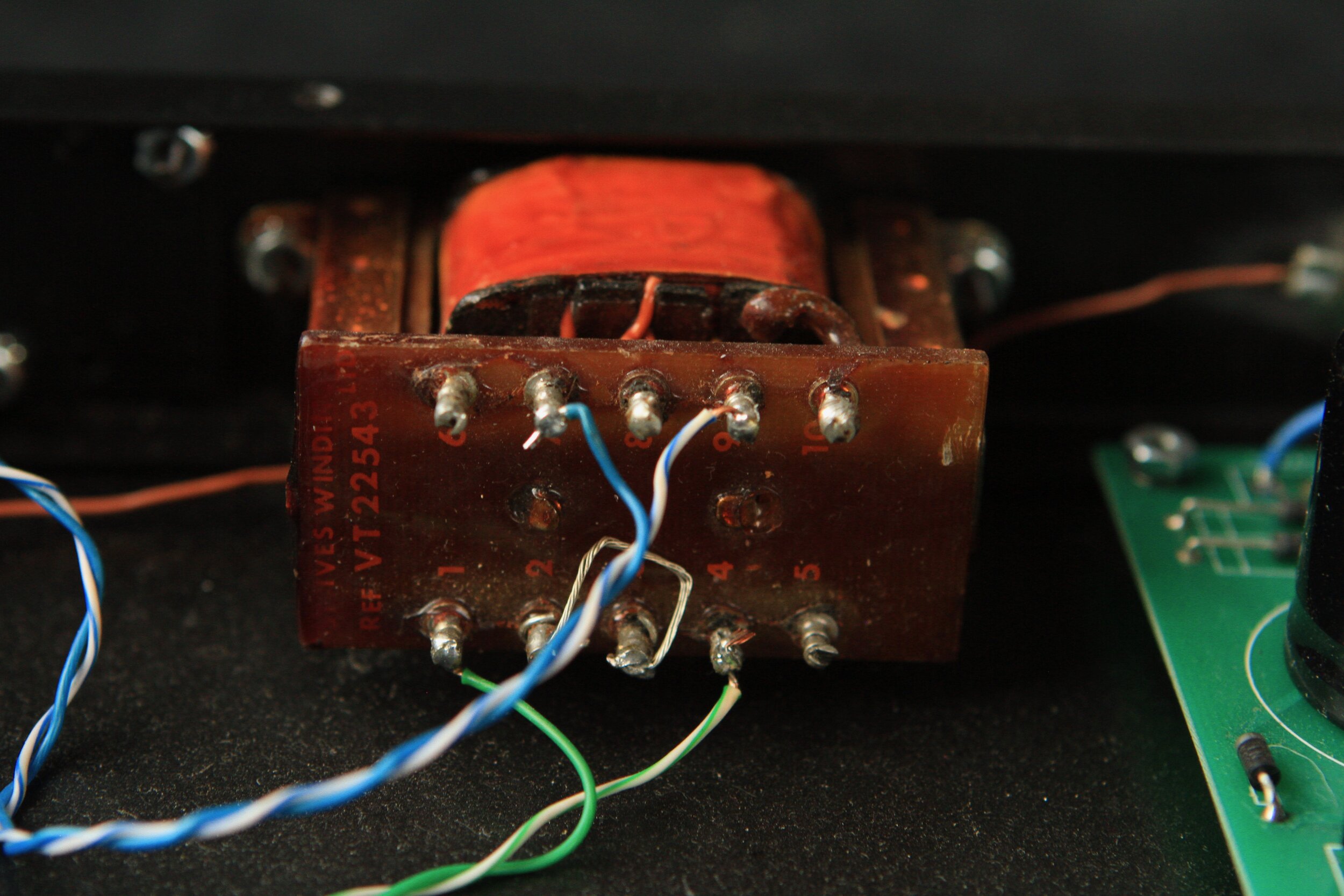

 Vintage St. Ives 1:1 output transformers were used to produce a balanced output. The vintage channels have an unbalanced output.
       
     
 This build is a clone of the Trident A-Range console strip. It is a mic preamp or line amp followed by a 6 channel EQ: 4 mid bands and high and low shelves.
       
     

This build is a clone of the Trident A-Range console strip. It is a mic preamp or line amp followed by a 6 channel EQ: 4 mid bands and high and low shelves.

 Based on examining the channel strips and original schematics at Smart Studios in Madison, WI, I drew a PCB, closely following the original routing. Like the original, two transformers are used for the mic and line input, with the 3 deck grayhill sw
       
     

Based on examining the channel strips and original schematics at Smart Studios in Madison, WI, I drew a PCB, closely following the original routing. Like the original, two transformers are used for the mic and line input, with the 3 deck grayhill switch selecting the gain and input.

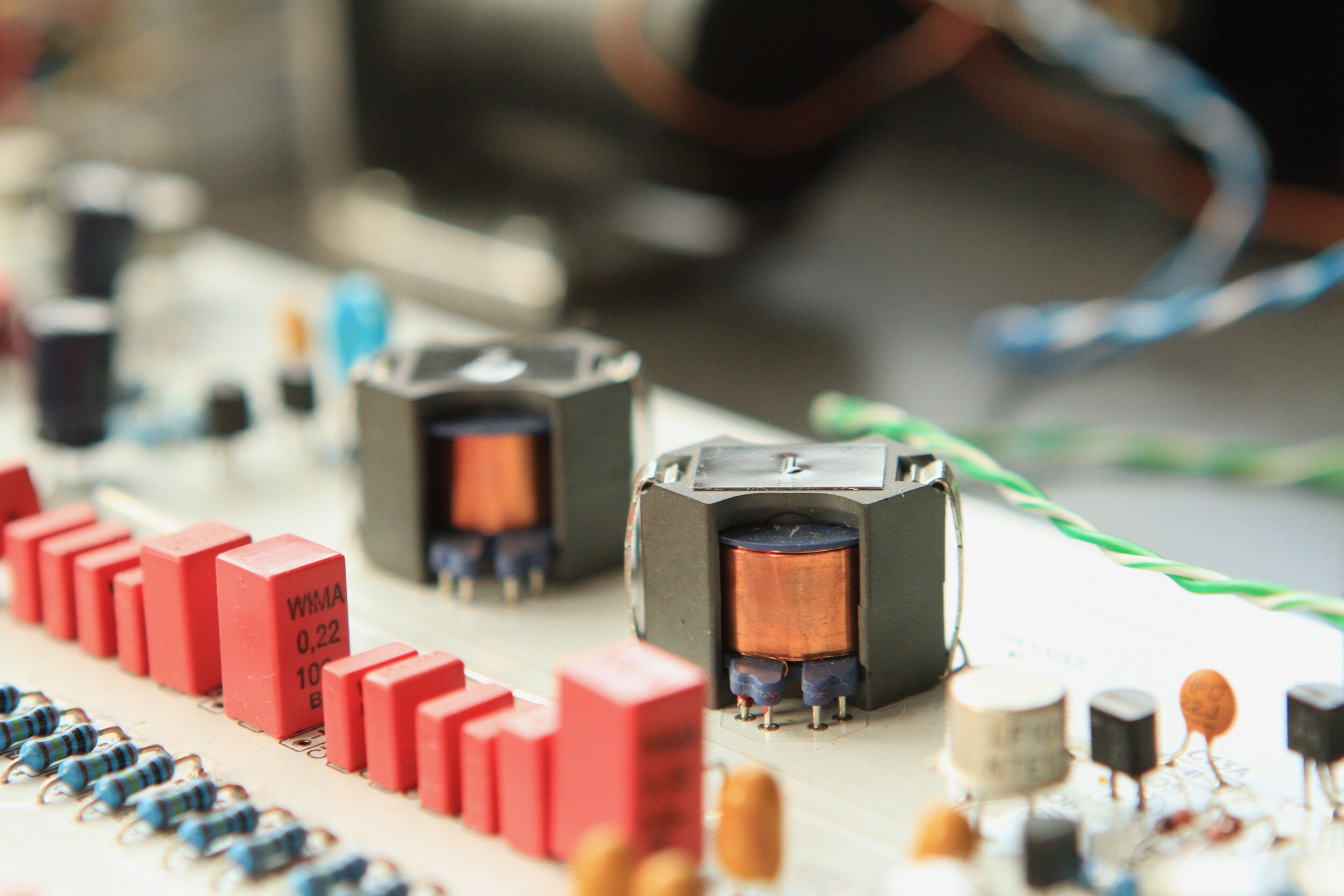

 The inductors were wound by ChrioN at groupdiy from specs calculated from the schematic. An initial attempt was built up and I brought it over to the Studio. Listening side-by-side against the vintage Trident console, the Inductor bands did not soun
       
     

The inductors were wound by ChrioN at groupdiy from specs calculated from the schematic. An initial attempt was built up and I brought it over to the Studio. Listening side-by-side against the vintage Trident console, the Inductor bands did not sound right. Re-examing the original channels, the originals had different inductor cores (N30). A new set of inductors were wound and prototyped and the sound performance of the clone was very close to the original Trident.

       
     
 Vintage St. Ives 1:1 output transformers were used to produce a balanced output. The vintage channels have an unbalanced output.
       
     

Vintage St. Ives 1:1 output transformers were used to produce a balanced output. The vintage channels have an unbalanced output.
